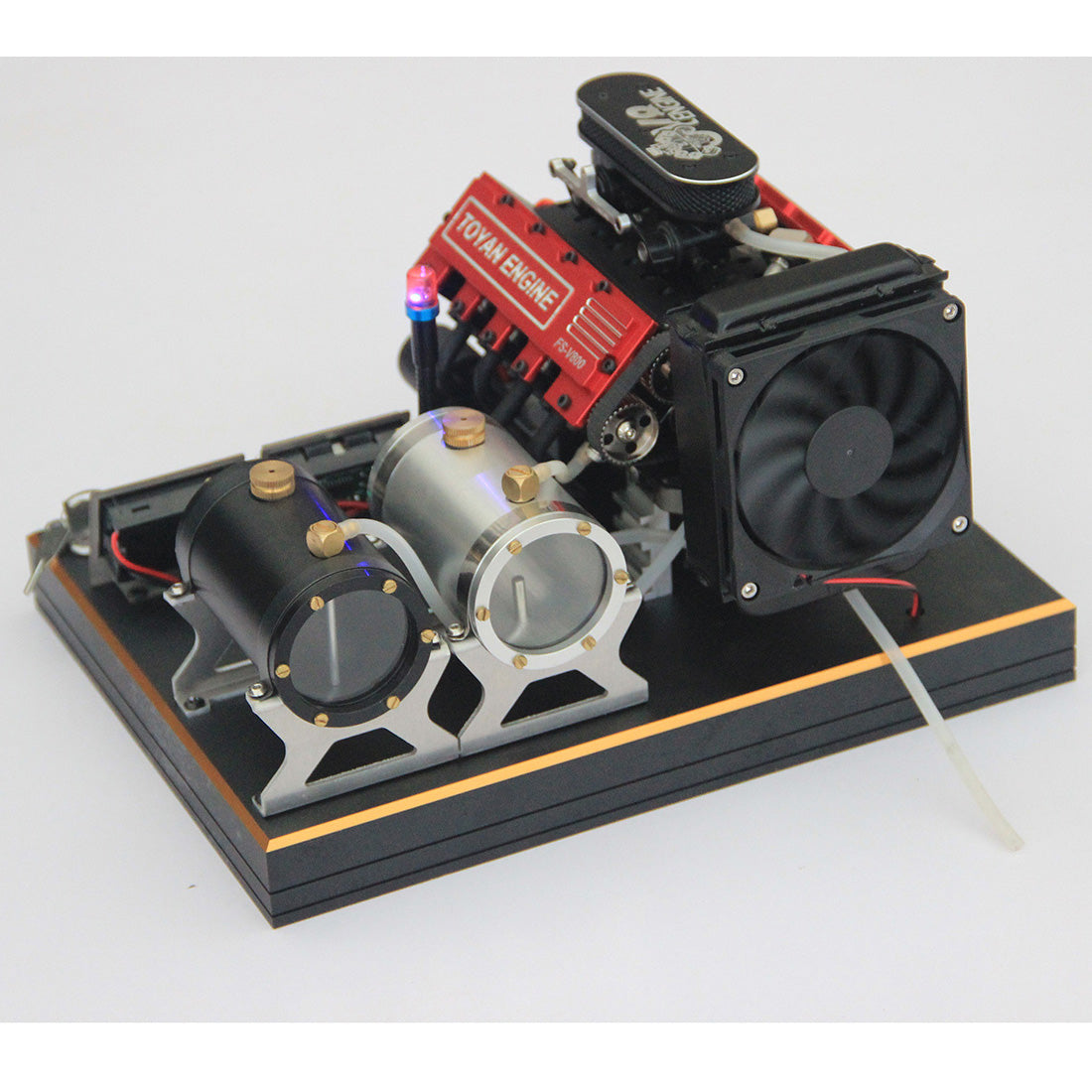

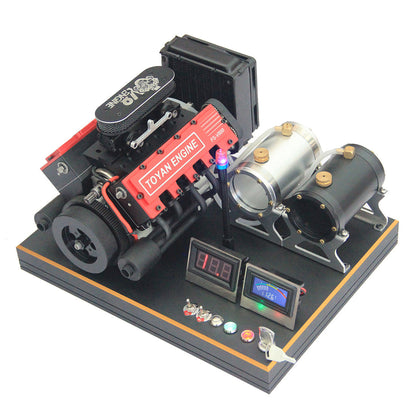

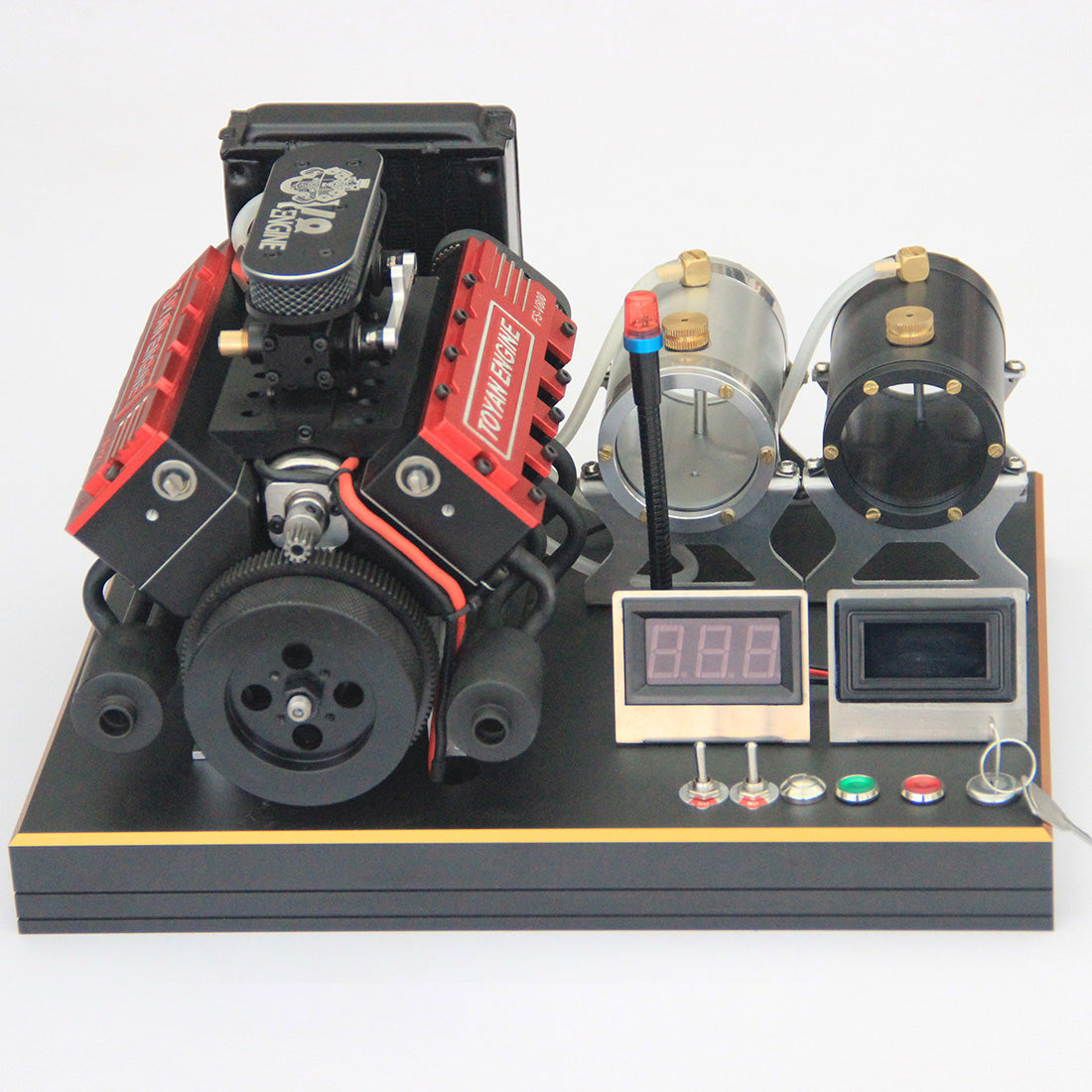

TOYAN FS-V800 V8 Engine With Starter Kit, Stand and Accessories

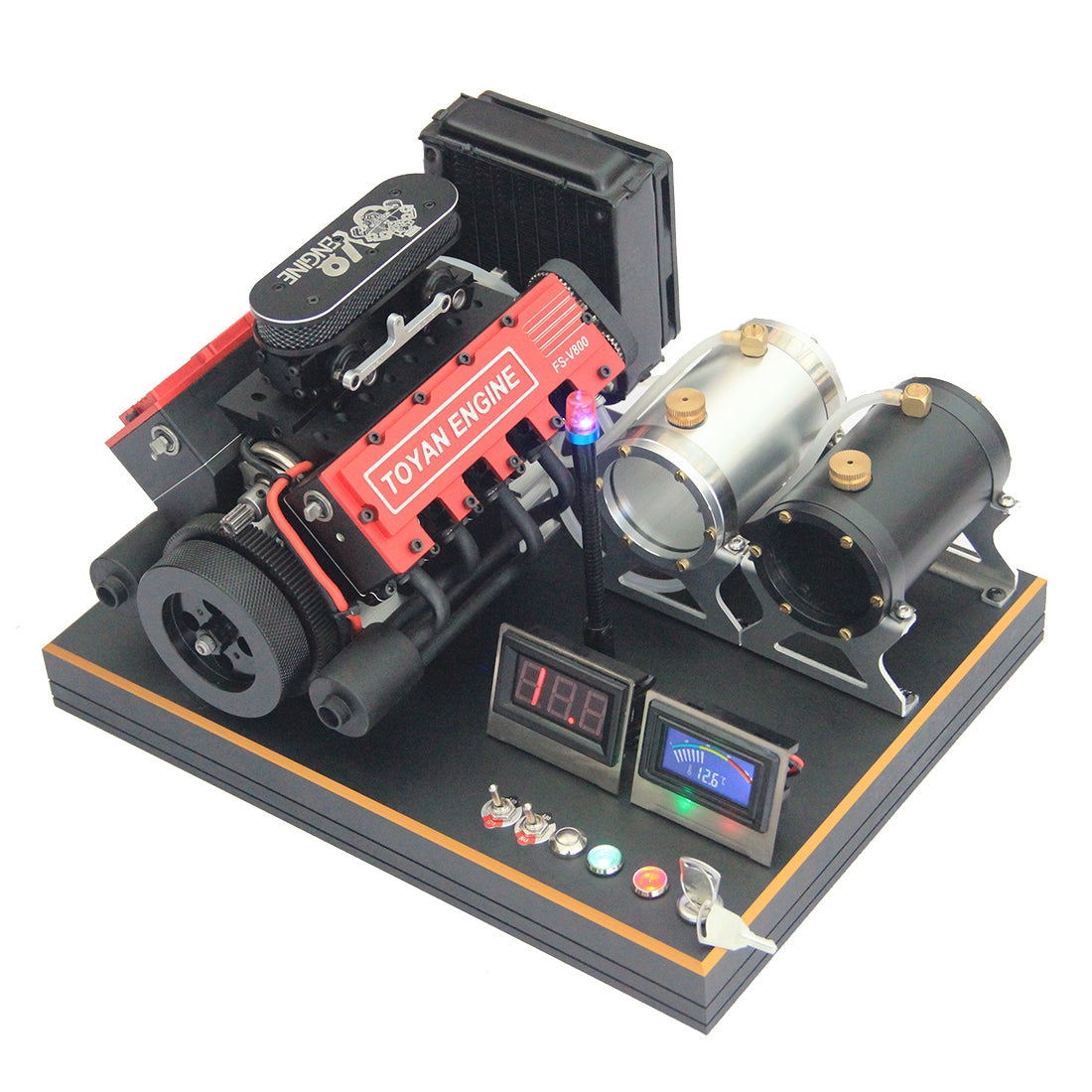

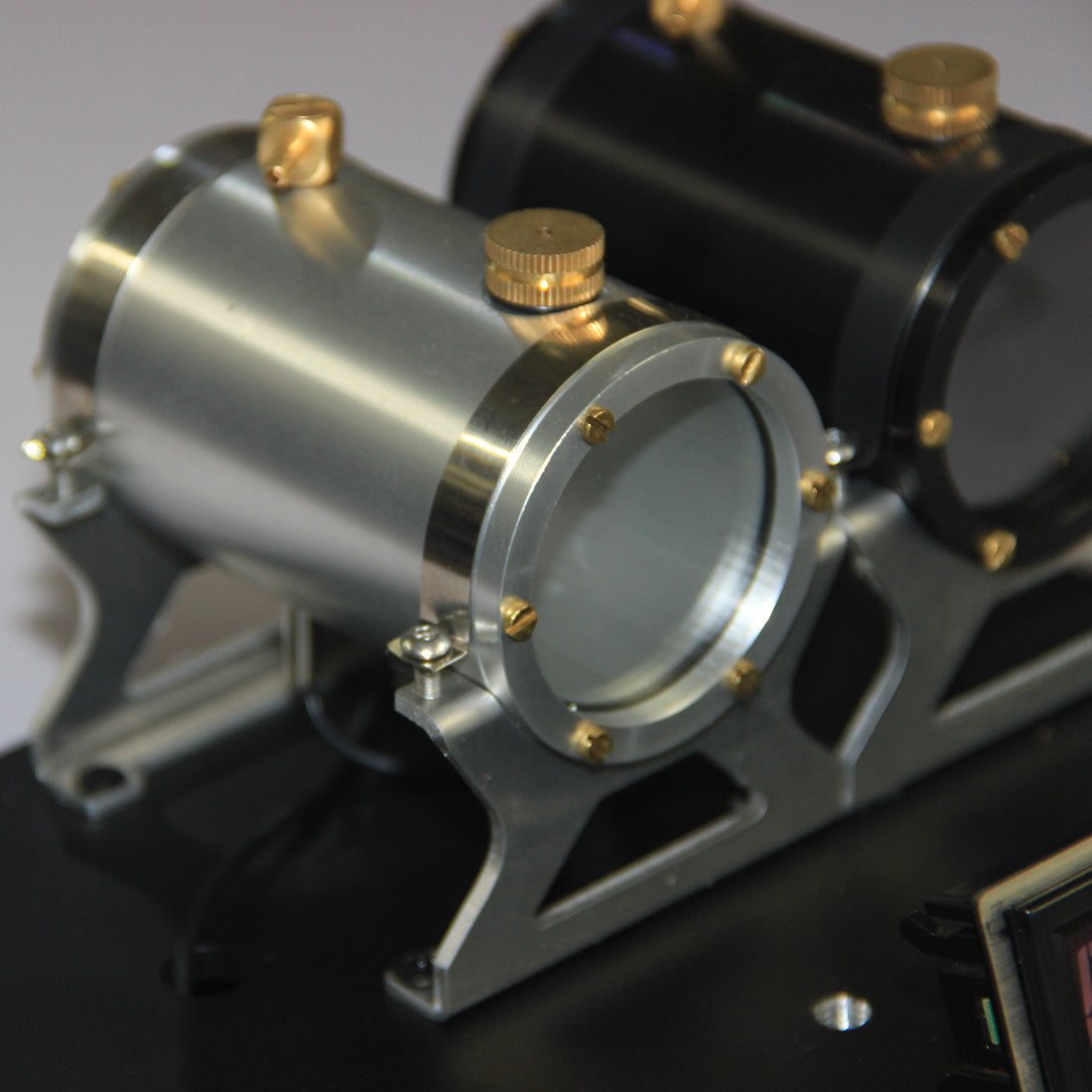

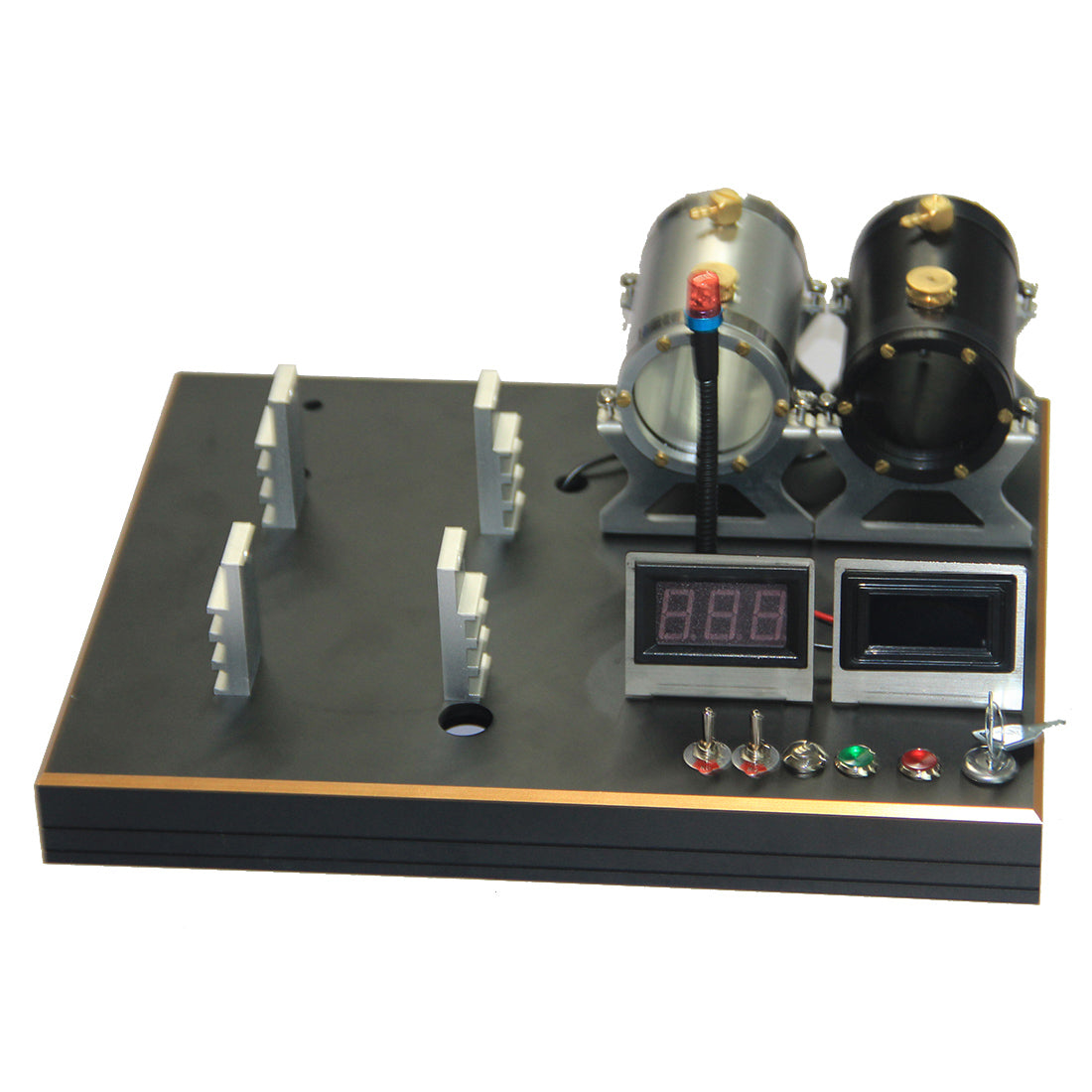

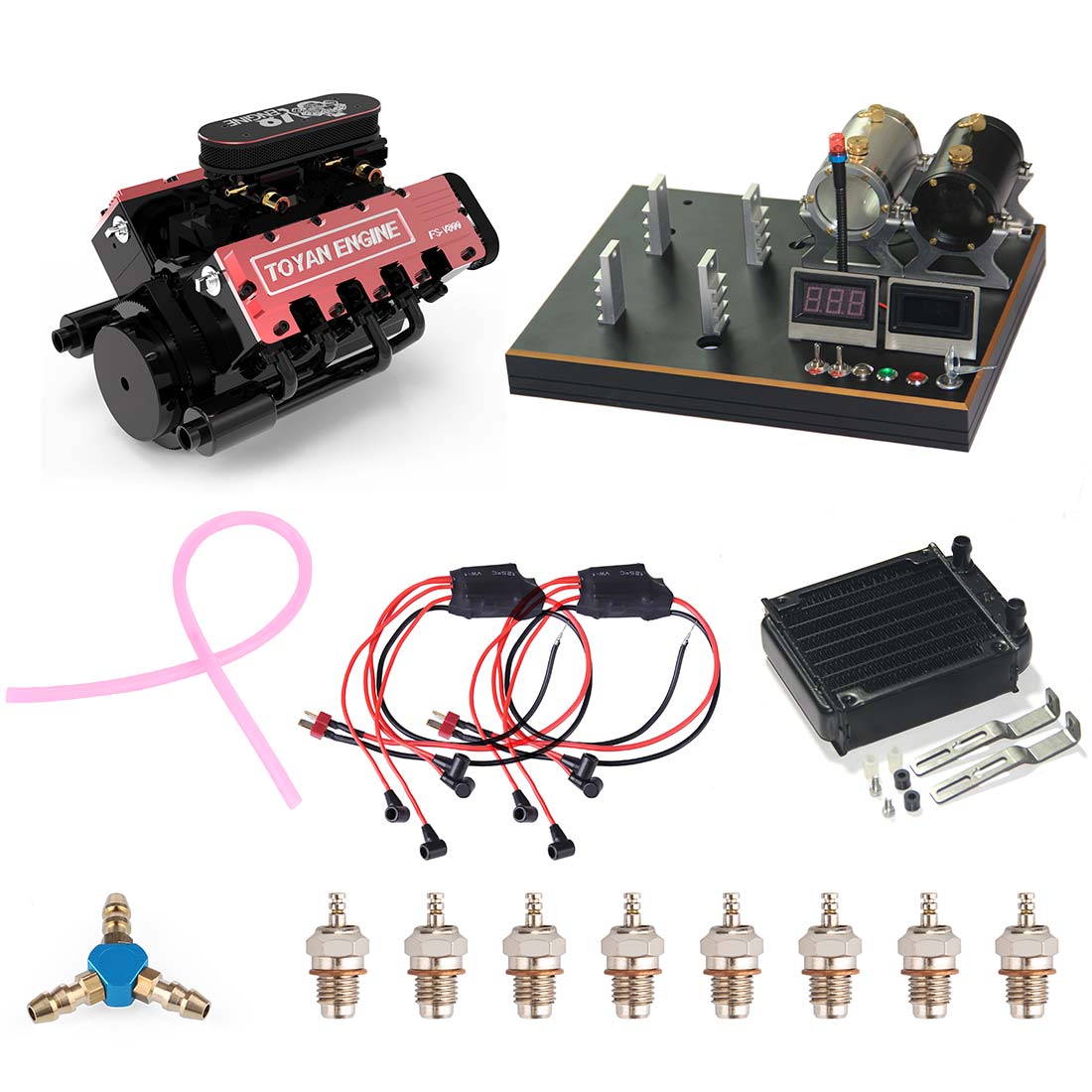

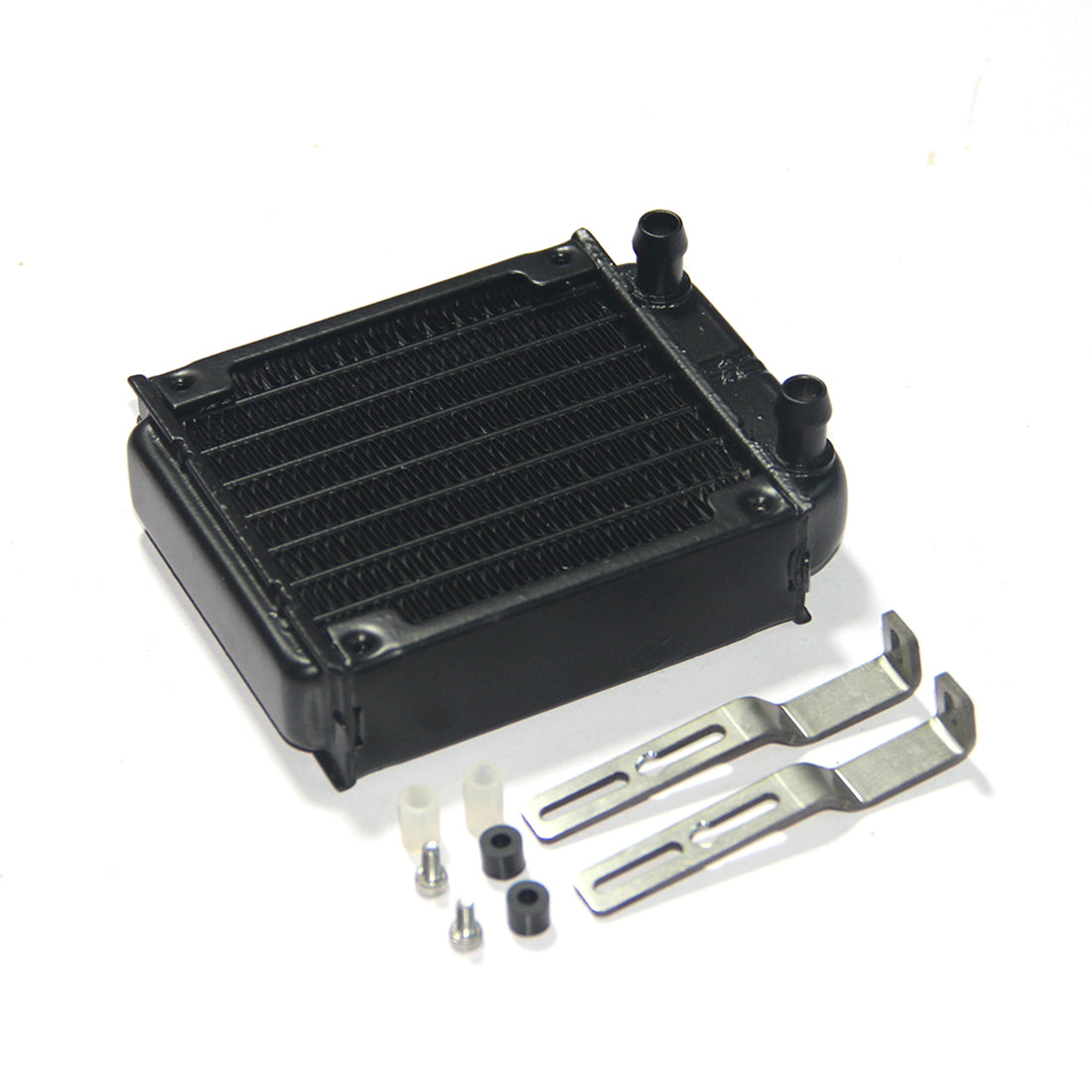

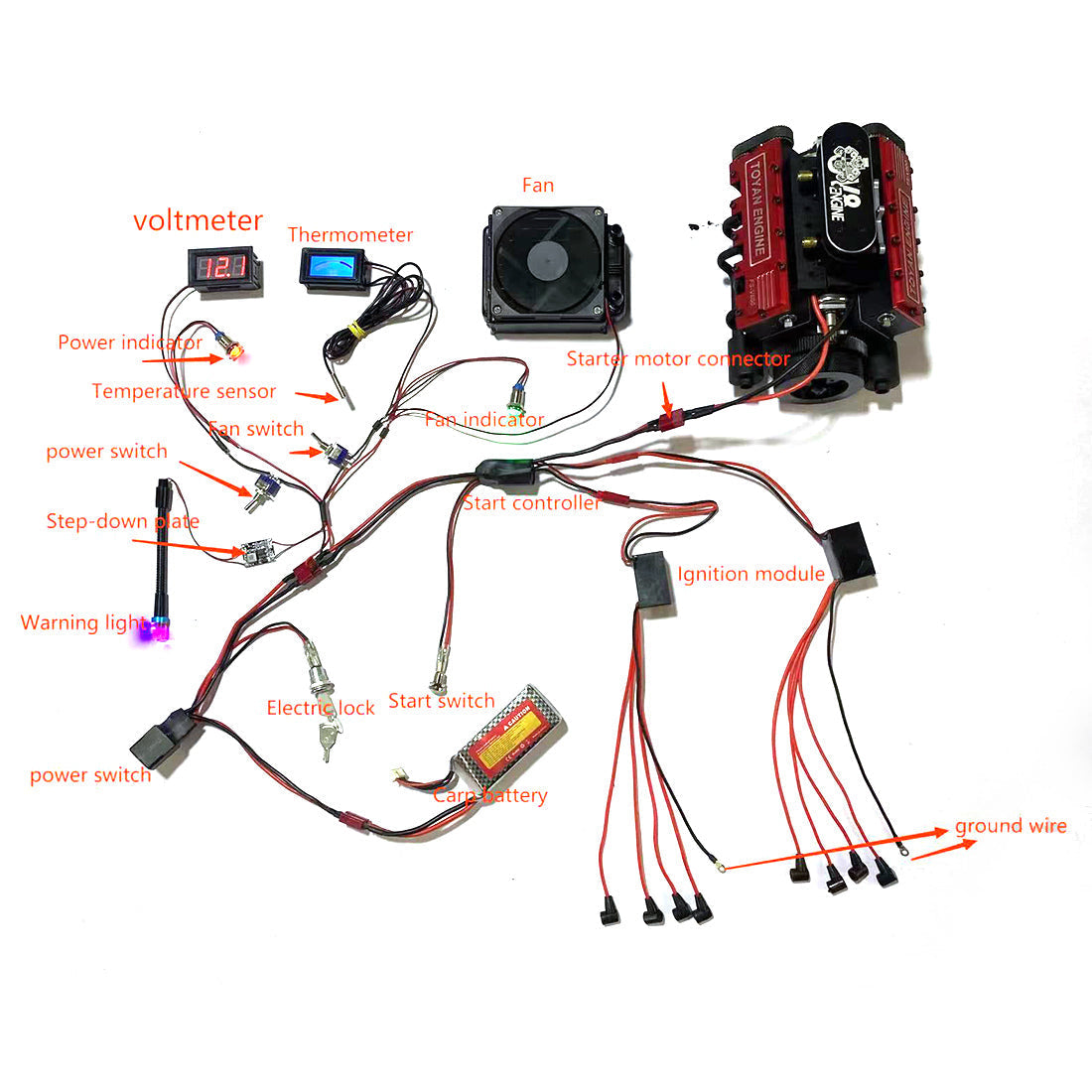

V8 Engine Set with Base and Ignition System: Include the kit version engine, ignition accessories, radiator and base set equipped with screws, the engine bracket, power switch, starting button, pressure relif tank, metal fuel tank, temperature display, voltage display and indicator light

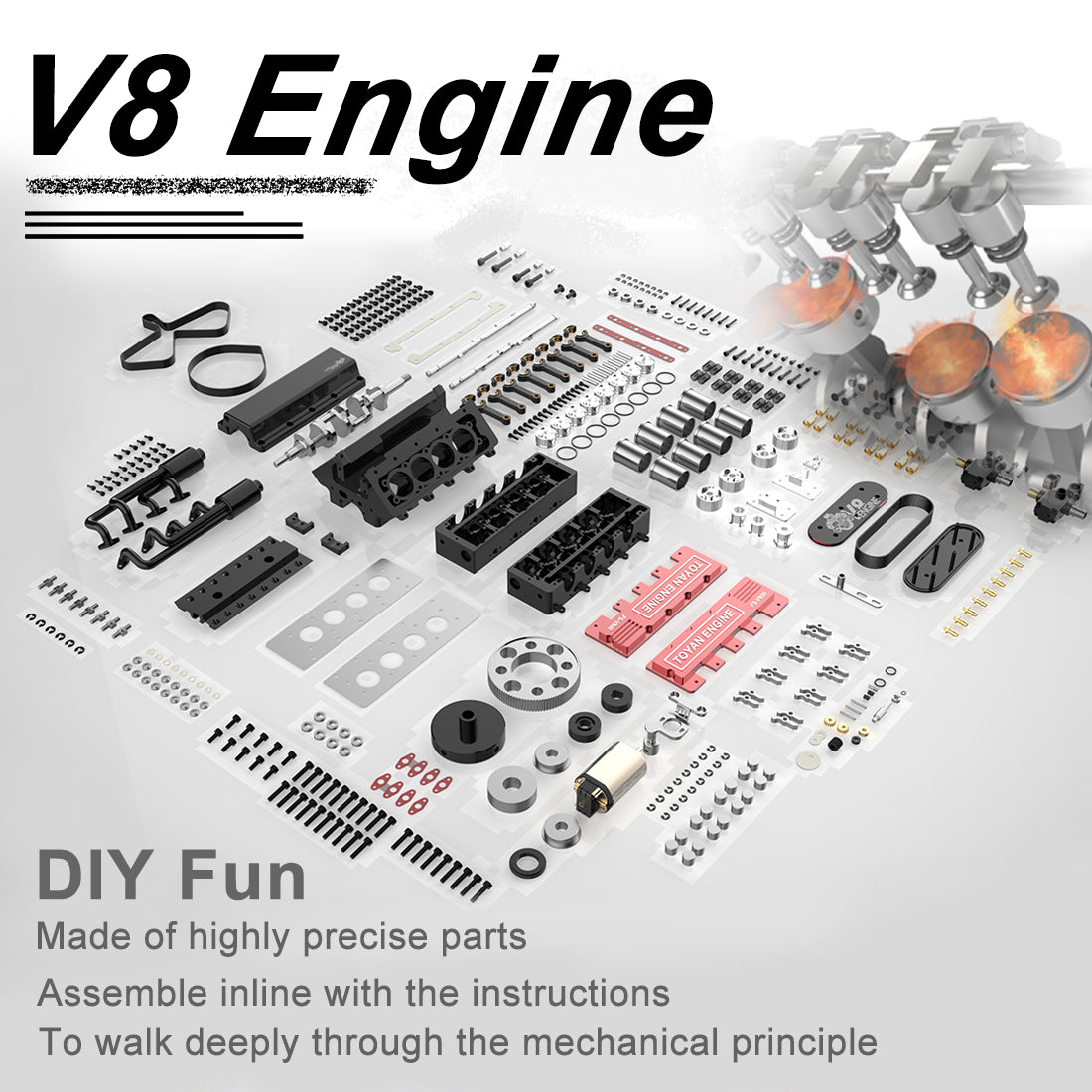

1. DIY Fun
Made of highly precise parts
Assemble inline with the instructions
To walk deeply through the mechanical principle

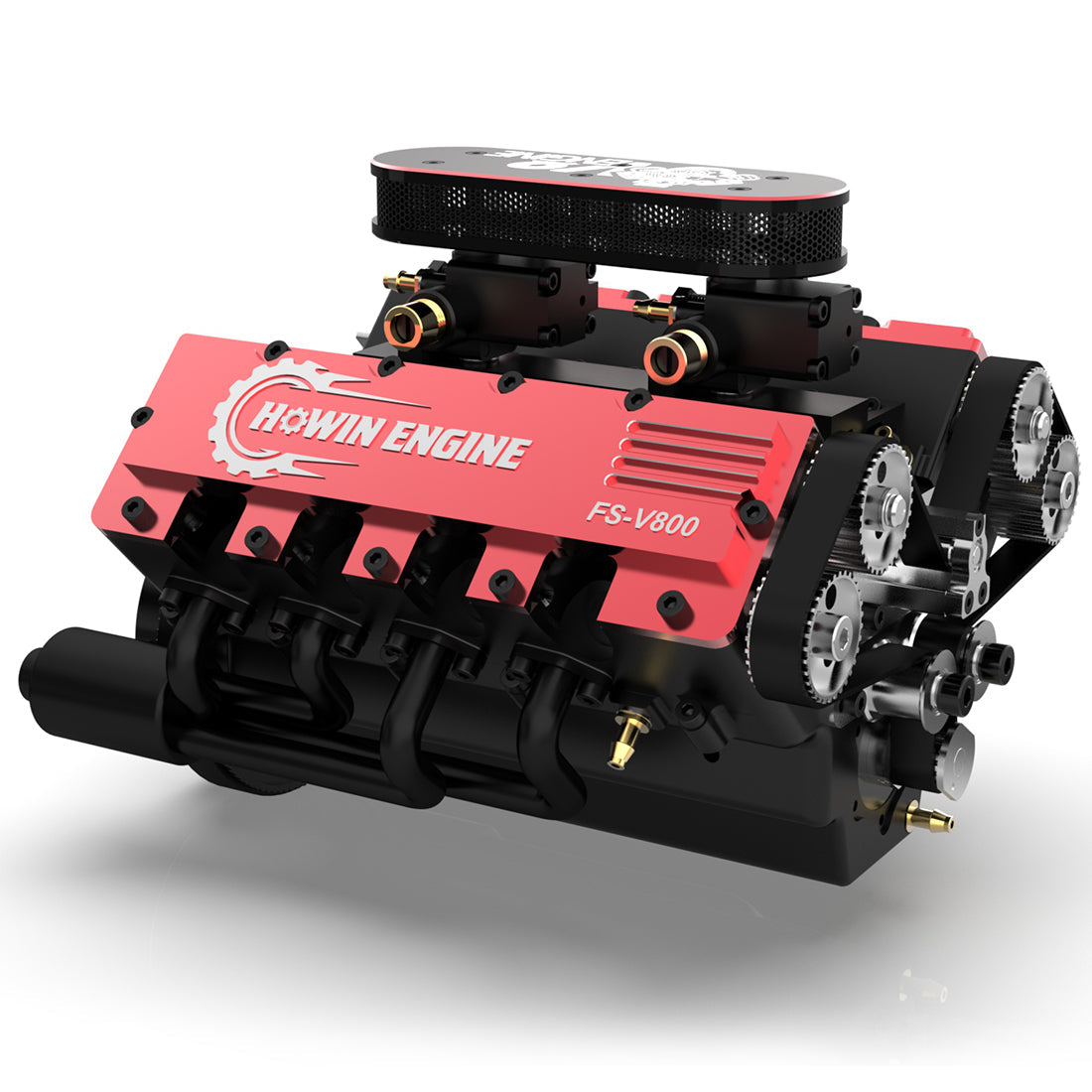

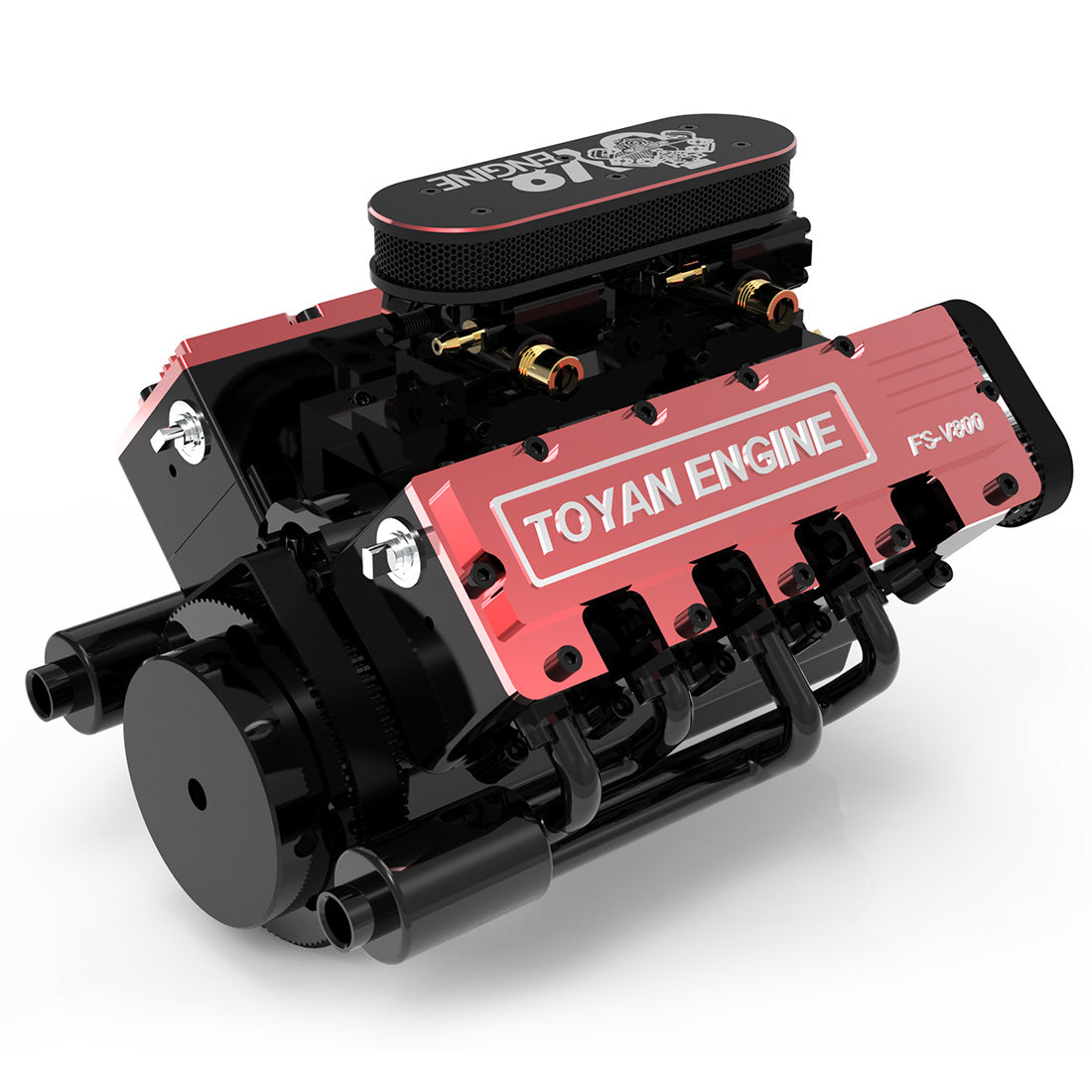

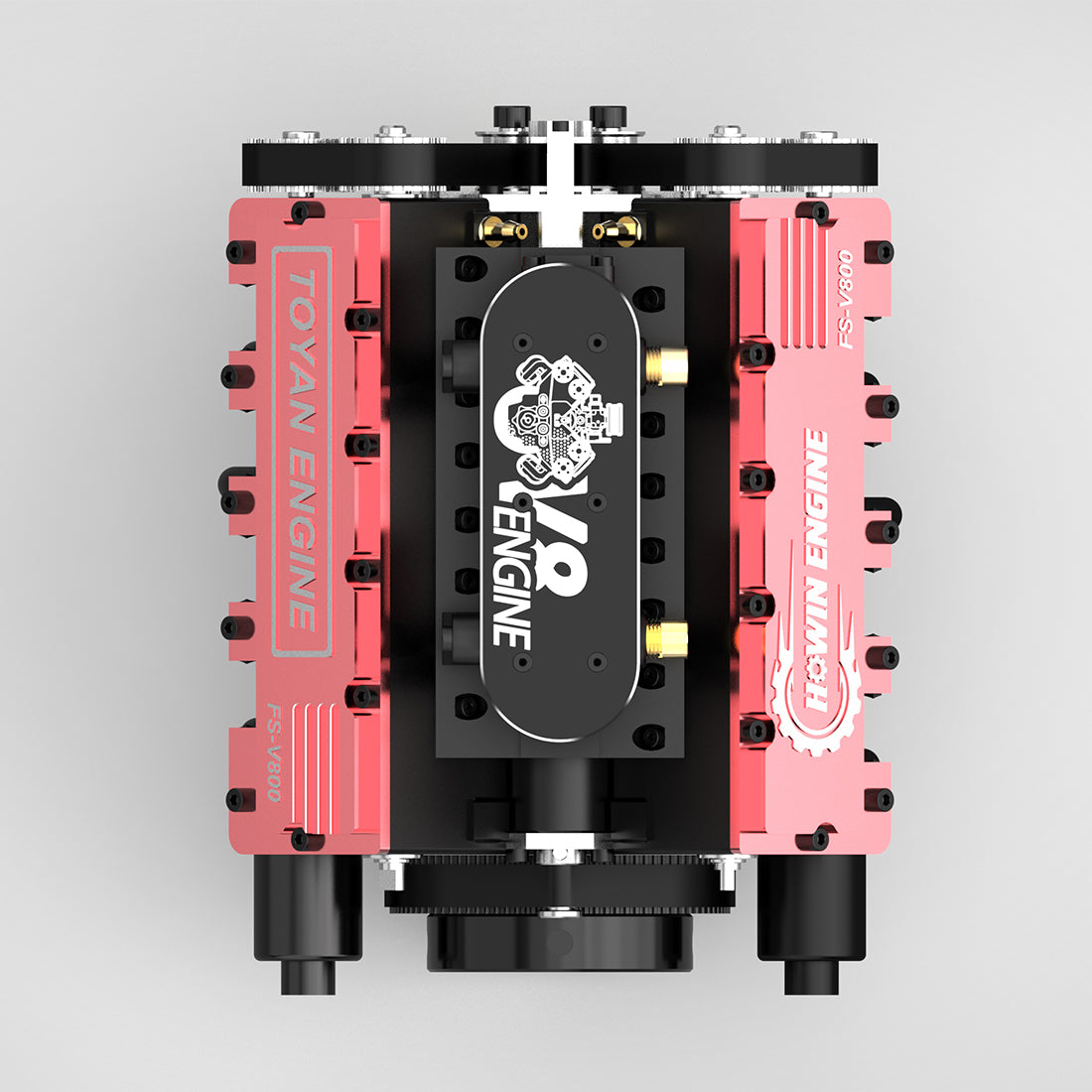

2.High Simulation Miniature
Designed with red sports elements Highly authentic appearance1:10 scale realistic engine

3.Long Stroke
The cross crankshaft is the blueprint for the engine design, effectively providing higher torque. Customized flexible oil seal keeps sealing performance in high speed operation.

4. Mechanical water cooling pump
The power of the pump, come from the crankshaft provides circulation power for the coolant liquid, and then in conjunction with the cooling fan to strengthen the self-cooling performance.

5.Integrated Machining Crankshaft
Built with 90 degree cross crankshaft structure, the engine features smoother operation, increasingly sensitive acceleration response with the highest speed up to 12500 RPM.

6. Precise Rocker Arm
Independent Intake & Exhaust Design
More Accurate Valve Switch
Alloy Rocker Arm

7.Dual Synchronous Pulley
The timing structure of the dual synchronous pulley minimizes the risk of gear jumping in high speed operation.

8. Precise Carburetor
The engine is designed with the brand new carburetor with pump for astoundingly accurate adjustment and superior response sensitivity of the throttle and more stable operation to users.

9. Integrated Exhaust Pipe
The small all-metal exhaust manifold provide the engine a more vigorous and powerful sound.

10. Lightweight
The lightweight structure of the engine enables impressive compatibility with RC models and greatly improved output ratio of the unit power.

11. Stereoscopic Cross-section Drawing ☞Nitro V8 instruction

12. Wide Application
This TOYAN V8 Engine makes a superb desktop power engine model to play, a tool for RC model cars or boats modification, a teaching aid for physical mechanical experiments and a high-end holiday gift for model enthusiasts.

Parameters:
.Model: FS-V800
.Form: KIT Version
.Scale: 1/10
.Cylinder: V-type 8 Cylinder
.Stroke: 4 Stroke
.Displacement: 28cc (3.5cc* 8)
.Bore: 16.67mm
.Stroke: 17.00mm
.Angle: 90°
.RPM: 1800-12500rpm
.Power: 4.35ps@11200rpm
.Cooling Mode: Water cooling
.Starting Mode: Electric (including starting motor)

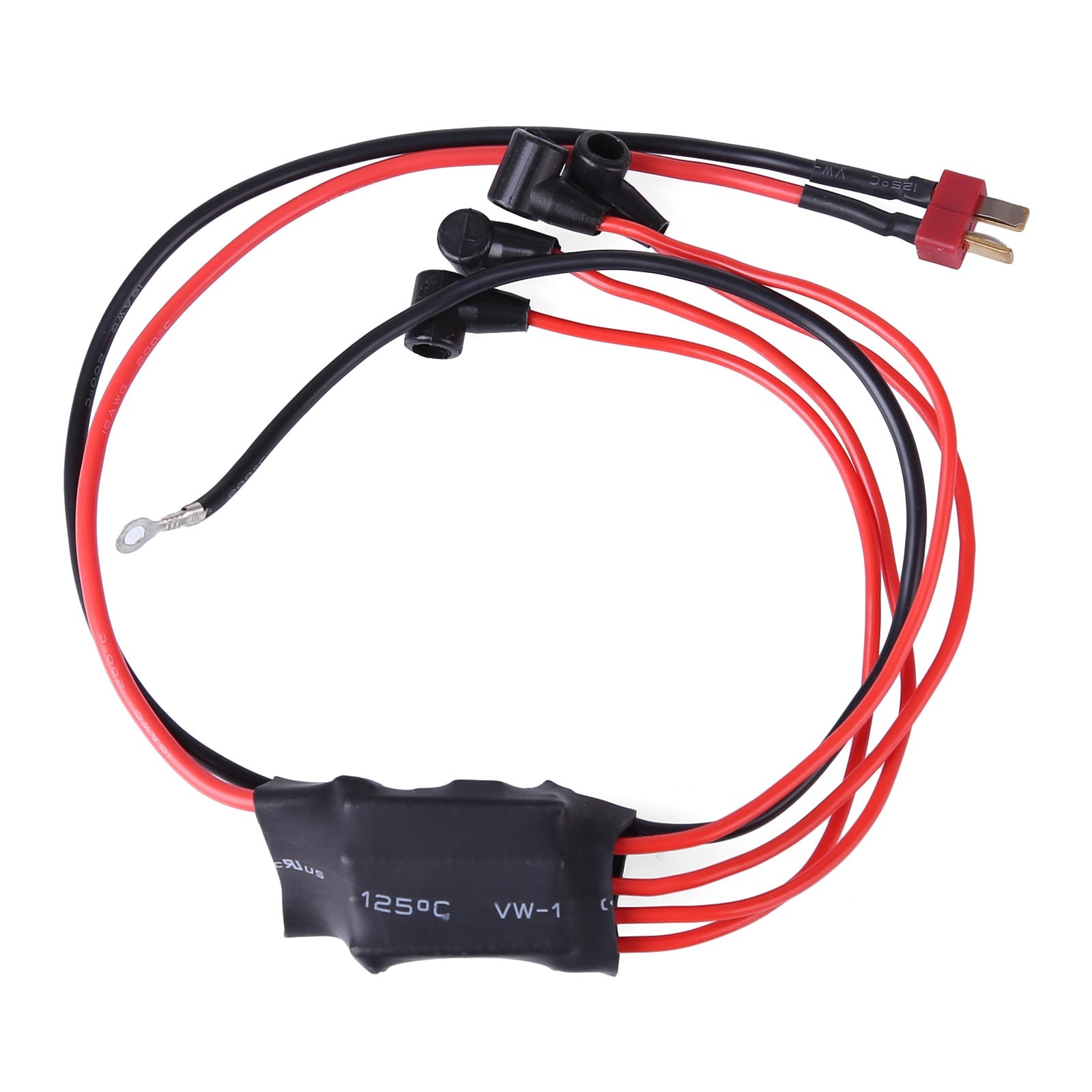

.Ignition Mode: 2 4-in-1(or 8-in-1) stabilized ignition modules

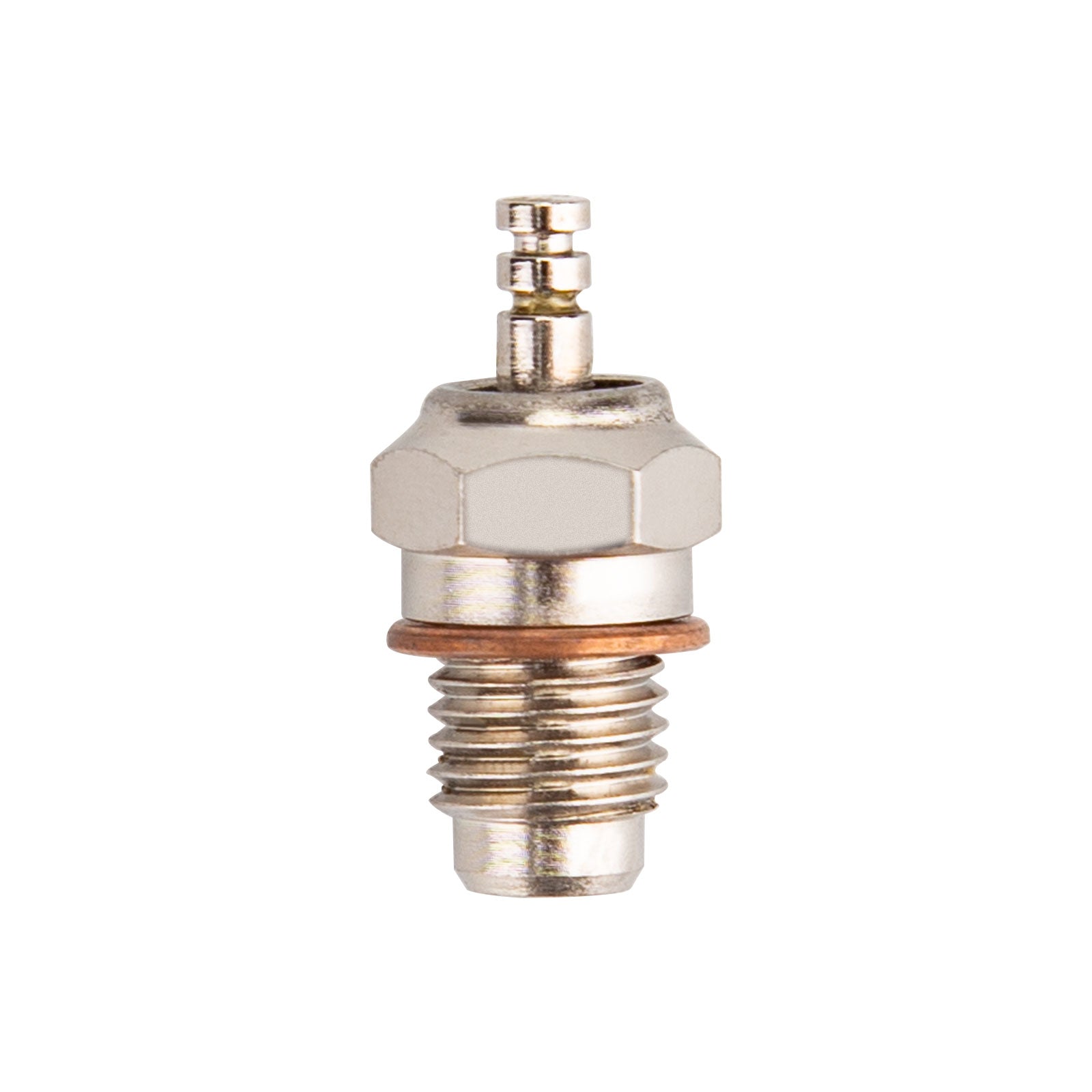

.Type of Electric Plug: F-type 4-stroke electric plug
.Lubrication Mode: Splash Lubrication (add a small amount of grease on the cam)
.Fuel Type: 20-25% nitro fuel
.Starting Voltage: 7.4V lithium battery (not included)
.Product Dimensions: 12.34 x 3.2 x 12.73cm
.Product Weight: 2050g
.Package Dimensions: 17 x 15 x 4cm
.Package Weight: 2950g
