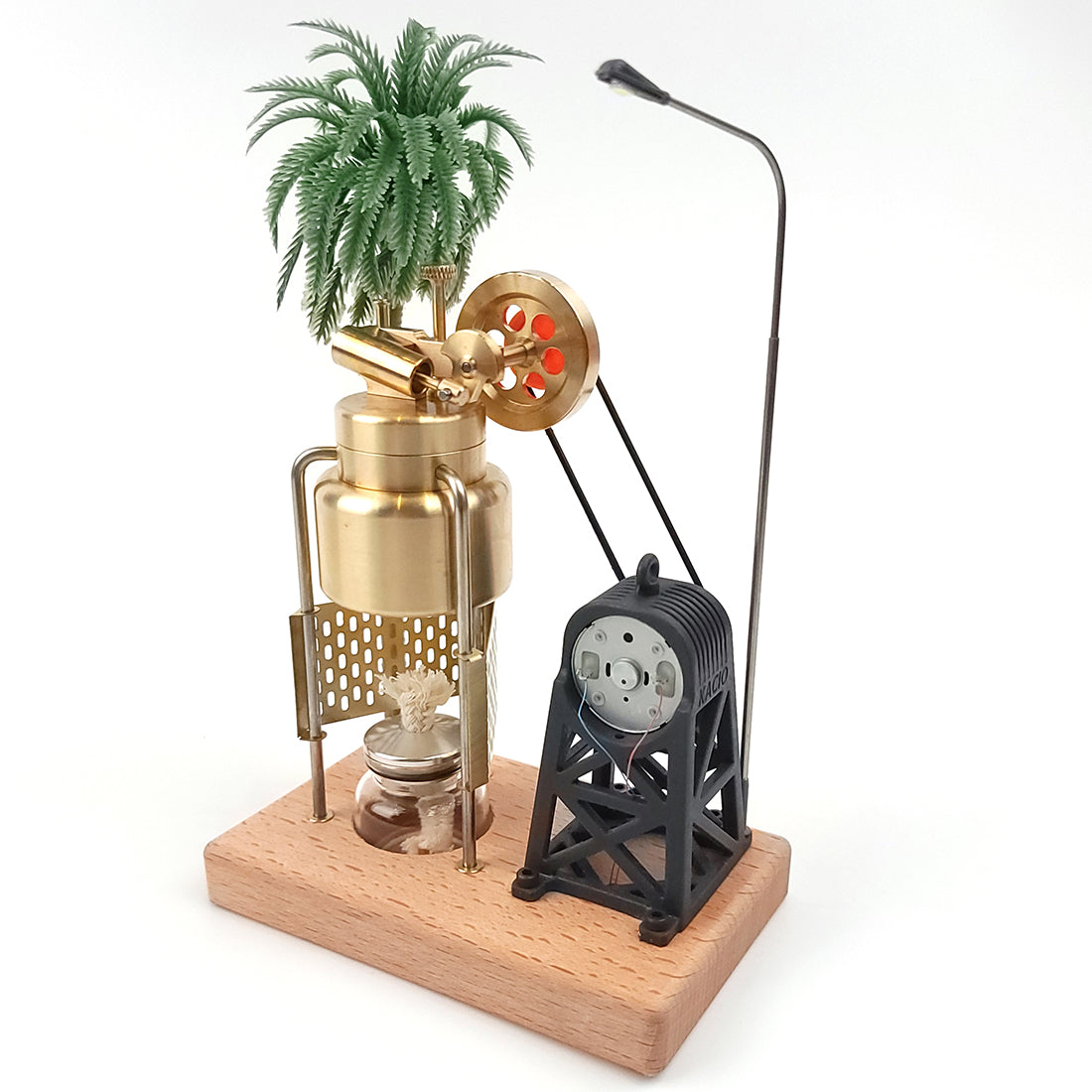

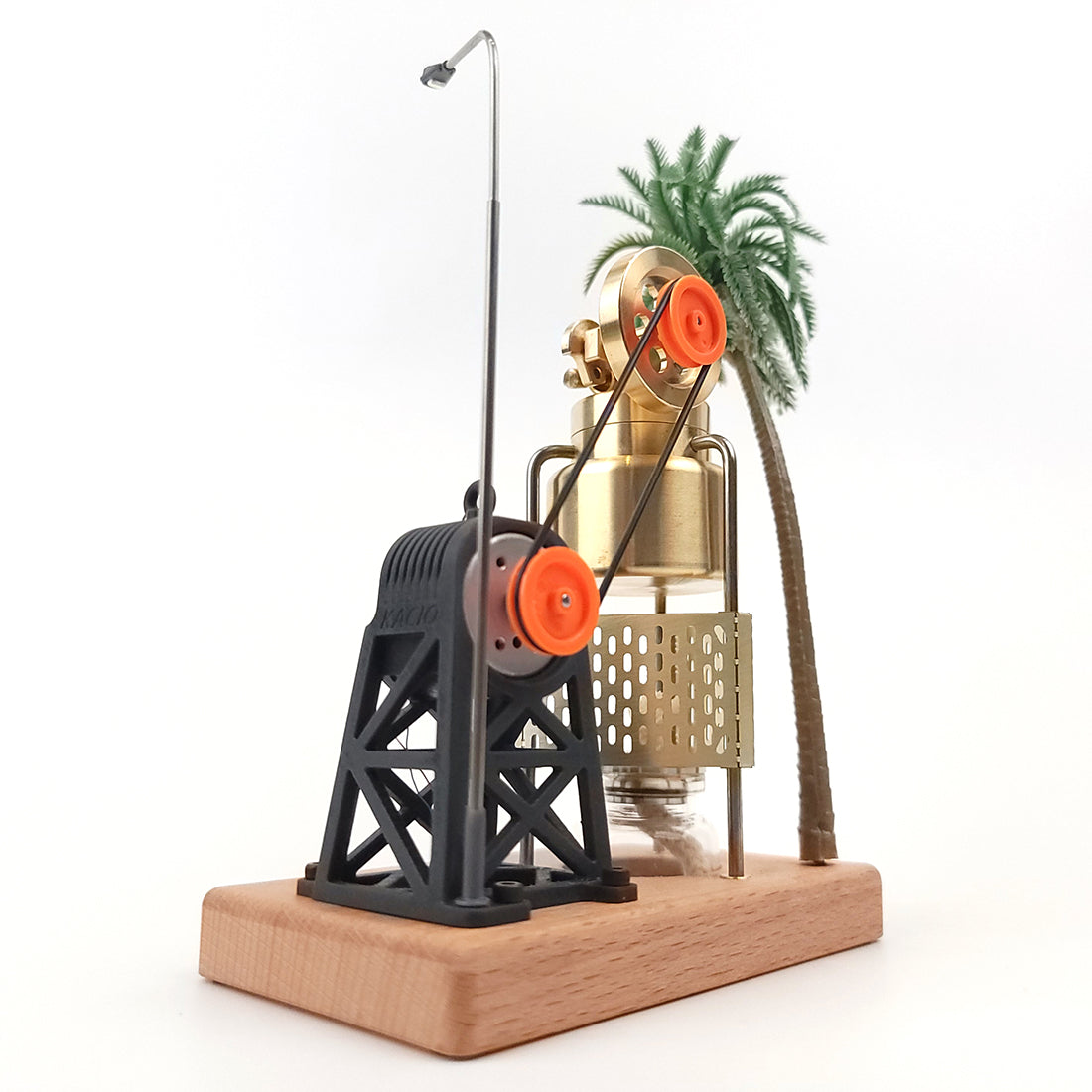

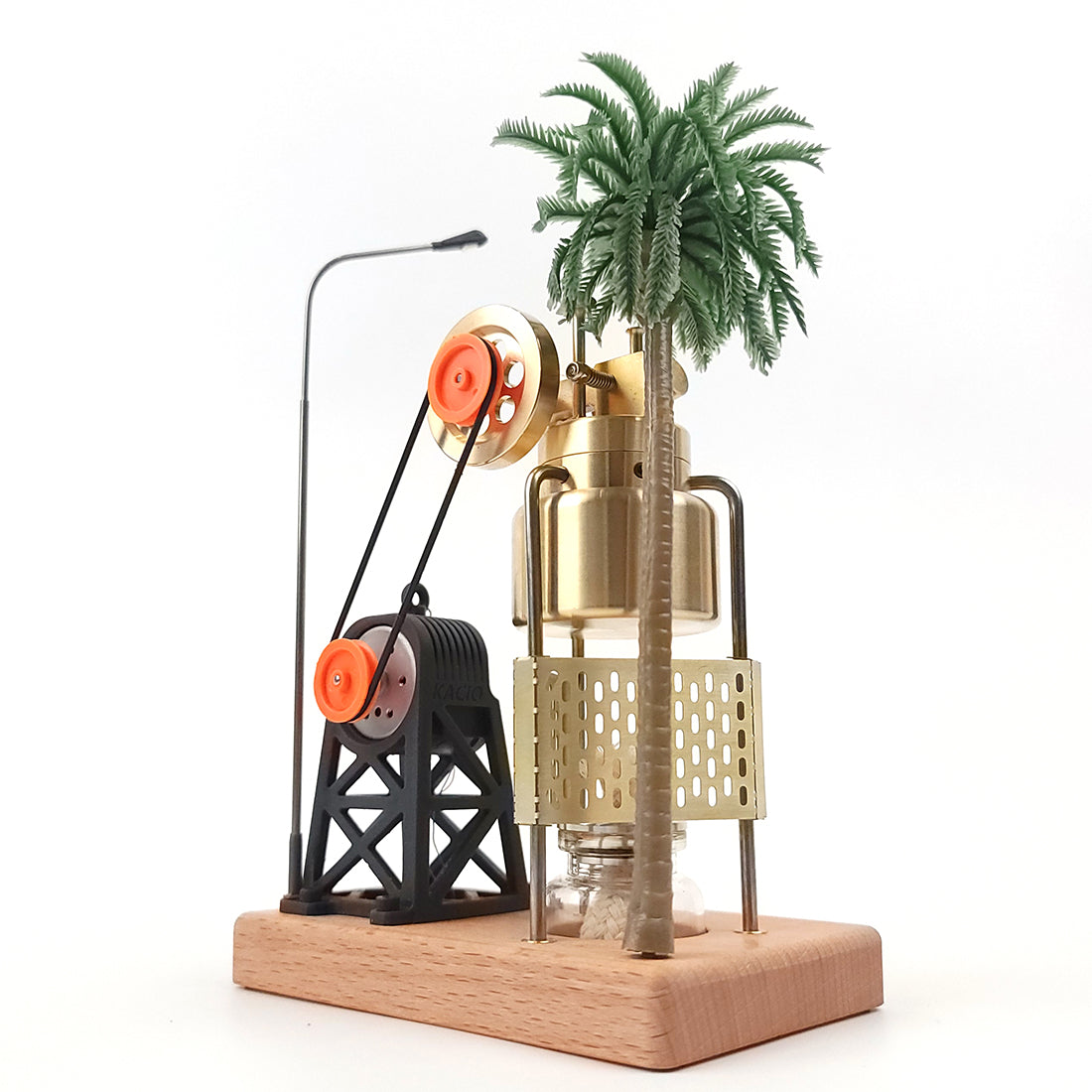

KACIO FD-6 Mini Three-legged Vertical Swing Steam Engine Model with Boiler & Steam Power Generating Units

KACIO FD-6 Mini Three-legged Vertical Swing Steam Engine Model with Boiler & Steam Power Generating Units

Features:

Mini Steam Engine:
This steam engine model is compact with exquisite appearance, easy to install.

Brass Made:
Made of brass, the premium quality. Sophisticated technology and CNC machining for smooth operation.

Easy to operate:
Light up the bulbs through the principle that the steam engine drives the generator to generate electricity.

Collection Available:
Designed with considerable operability to improve players' hands-on ability, the model is suitable for steam engine enthusiasts and fans to collect and use.
Walk through the operation principle of steam engines through operating the steam engine model. Both its craftsmanship and product appearance & operation are very valuable for collection.

How To Start A Steam Engine:
Instructions:
1. A steam engine is a reciprocating power machine that converts the energy of steam into mechanical work.
2. Lubricating oil should be dropped at each friction point of the nose before operation. Add about 15ML of water, then light the alcohol lamp until the water boils. And gently twirl the flywheel until it runs automatically. (If getting stuck, there are 3 reason may cause: 1. the pressure is insufficient. 2. cylinder and piston lubrication are not enough. 3. the cylinder and piston running is not in place.)

Specifications:
.Material: Brass
.Type: Steam Engine
.Steam Engine Dimensions: 6*6*5cm
.Cylinder Diameter: 6.0mm
.Stroke: 9.0MM
.Voltage: 3V~5V
.Product Weight: 290g
.Package Dimensions: 14 x 11 x 9cm
.Package Weight: 360g
.Packing: Carton Box
