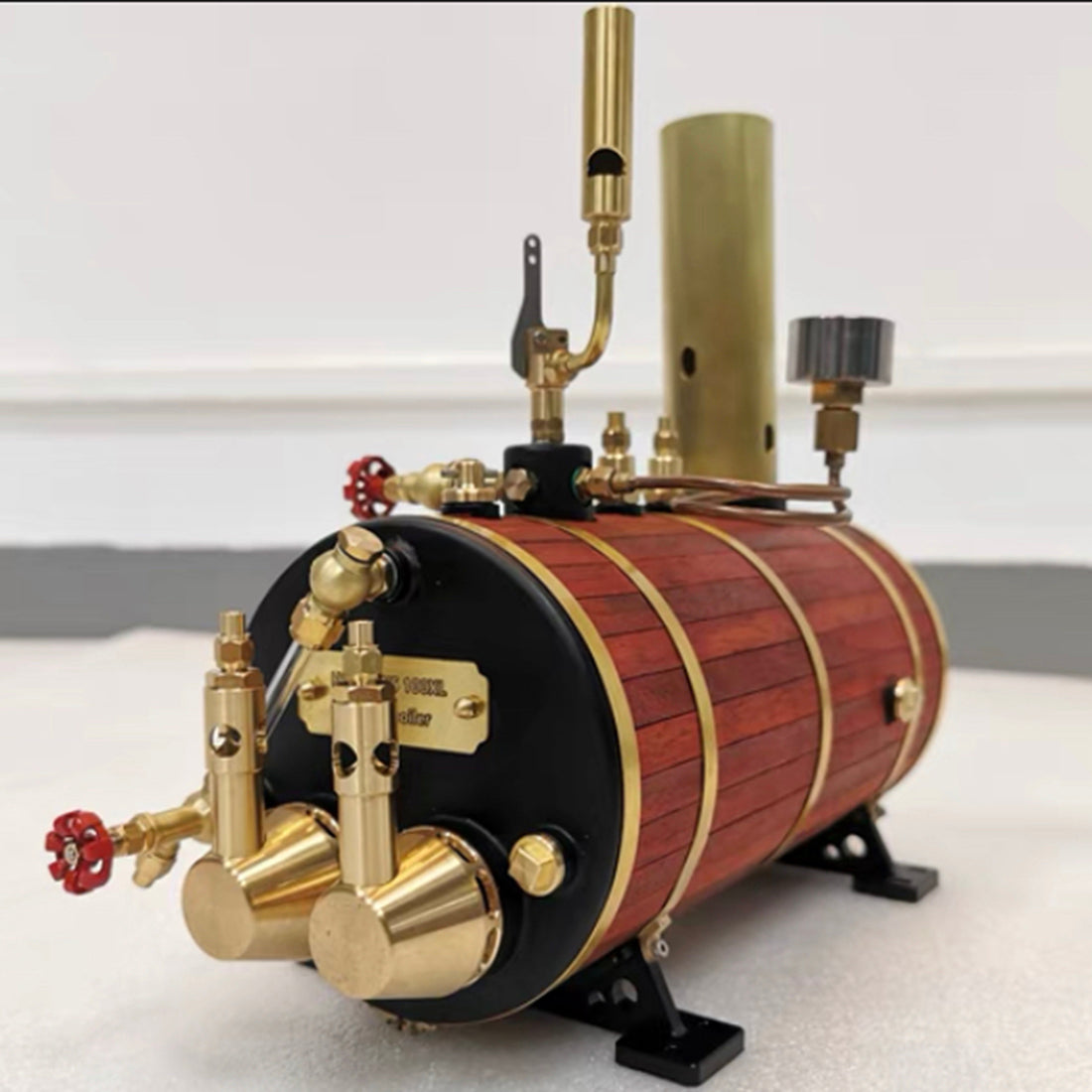

KACIO WS100XL 1000mL Horizontal Steam Boiler for Model Ship Steam Engine

KACIO WS100XL 1000mL Horizontal Steam Boiler for Model Ship Steam Engine

Features:

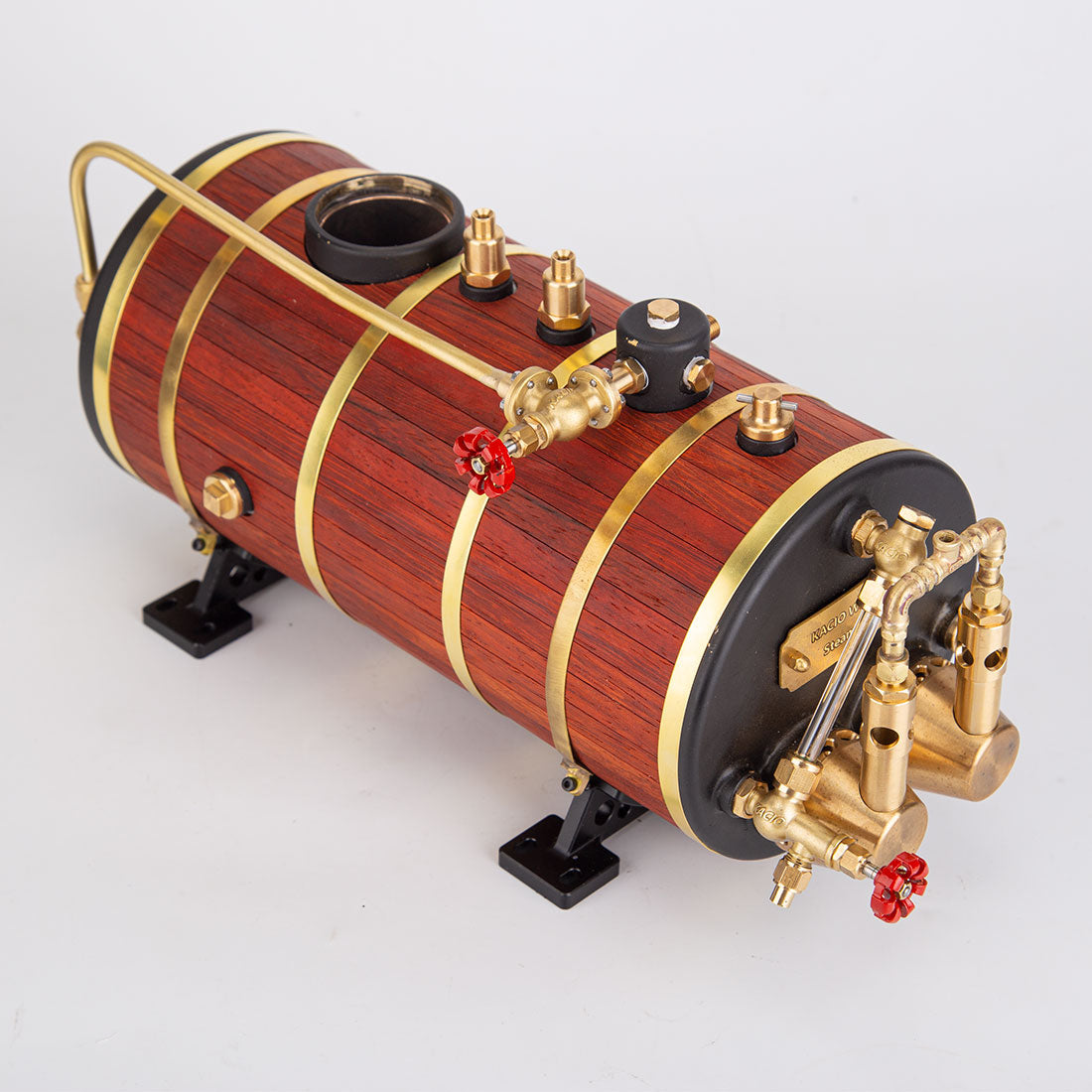

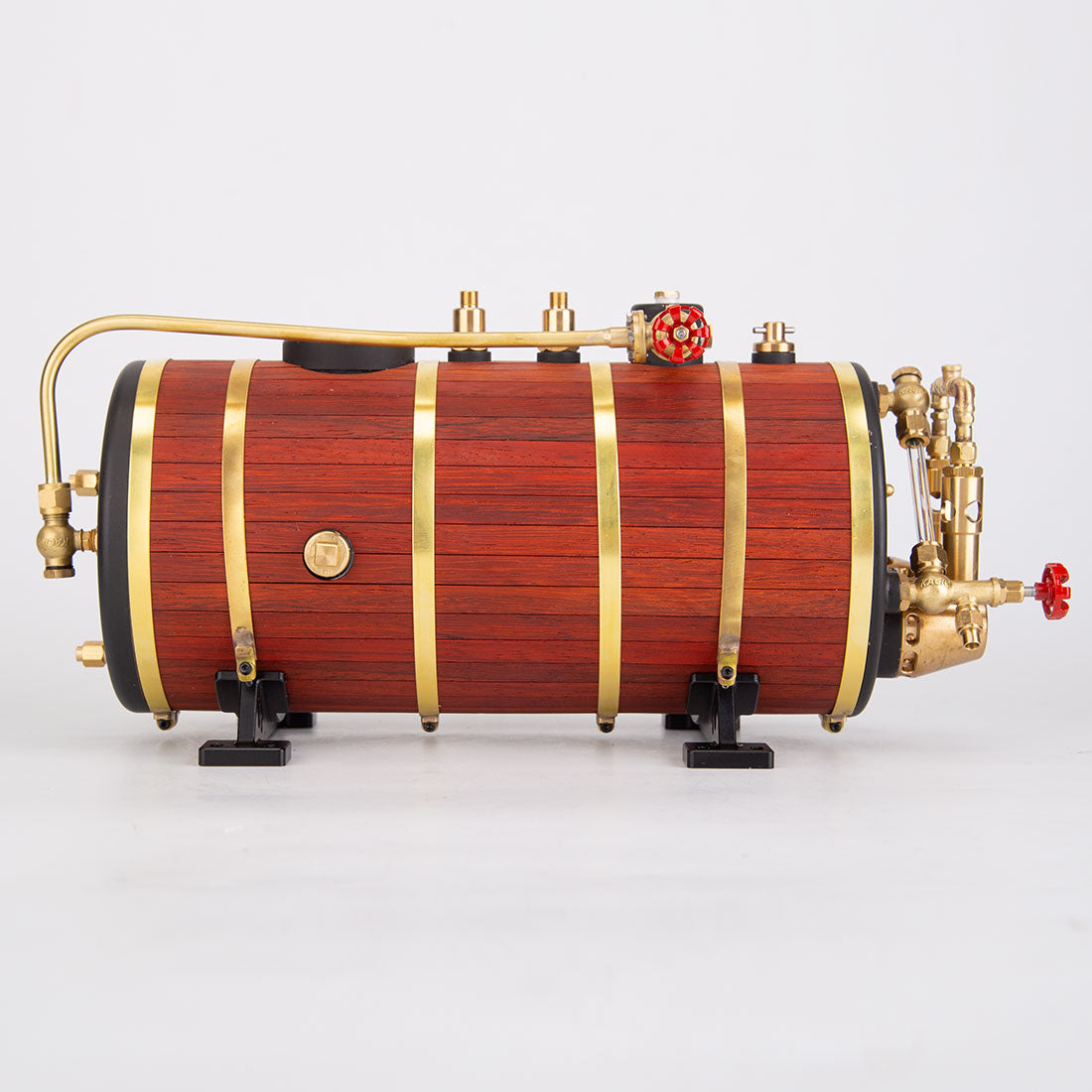

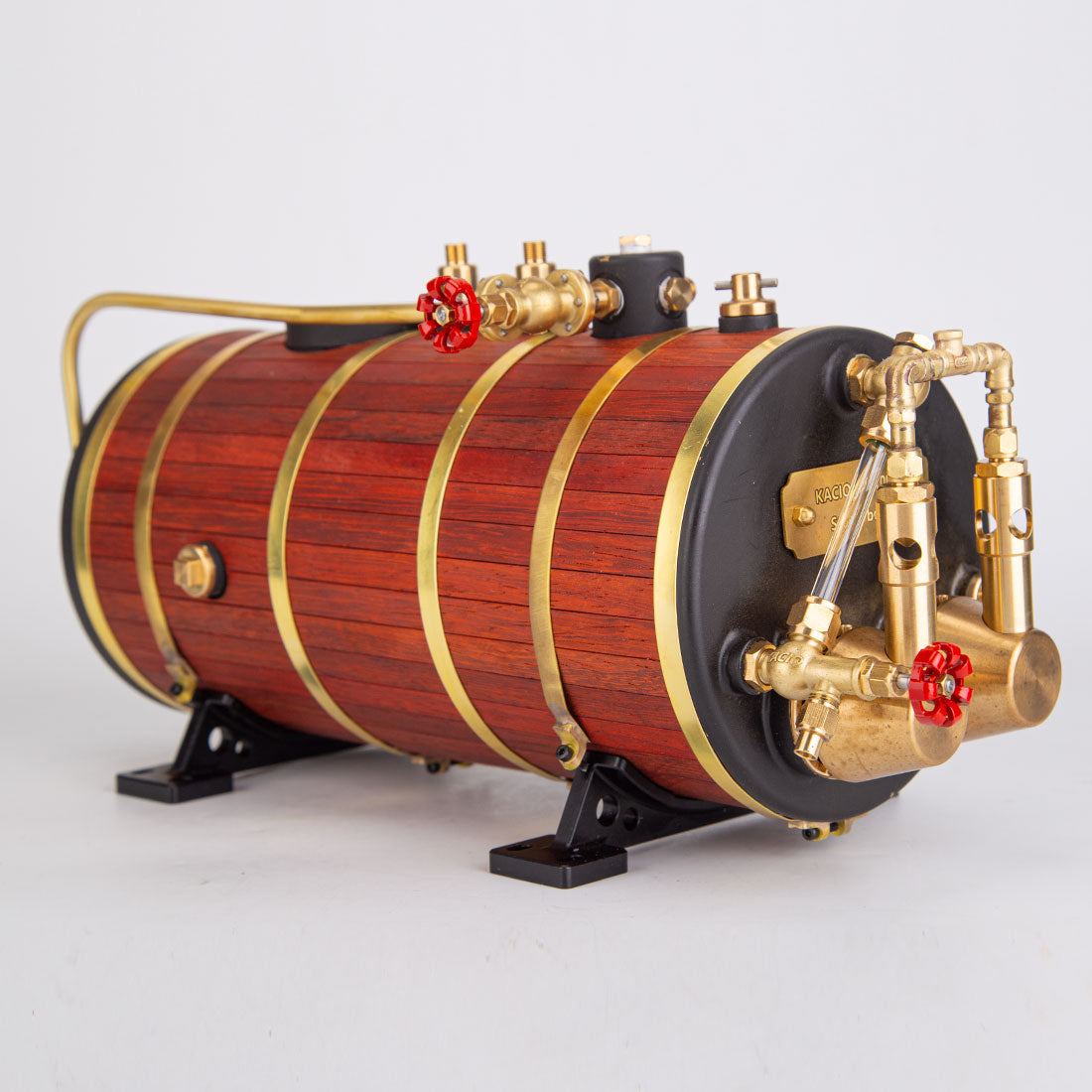

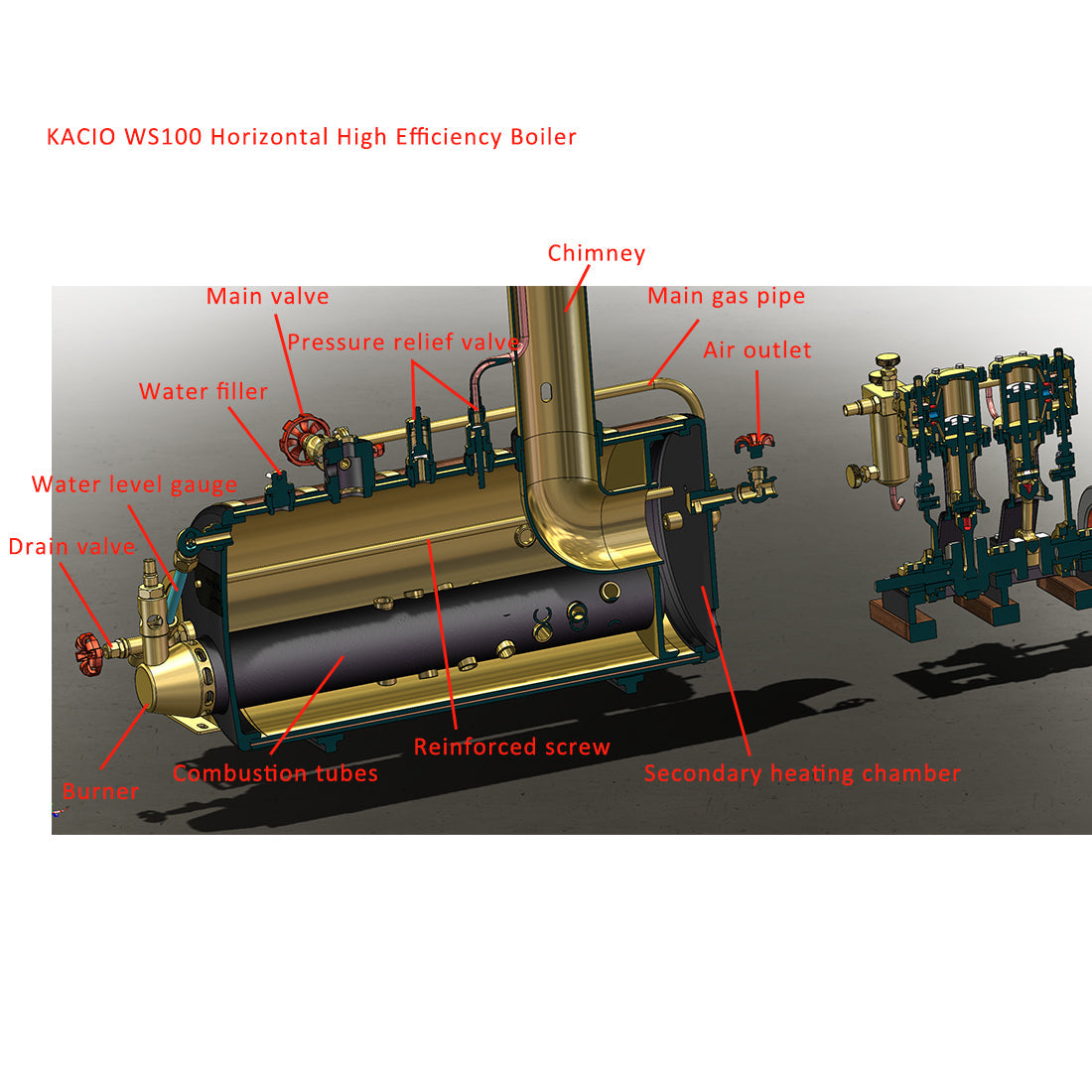

.Complete Equipments: The exquisite steam boiler features perfect appearance and performance equipped with pressure gauge, siren whistle, total valve, water gauge, dual safety valve, 1/4－40mm pipe joint, etc.

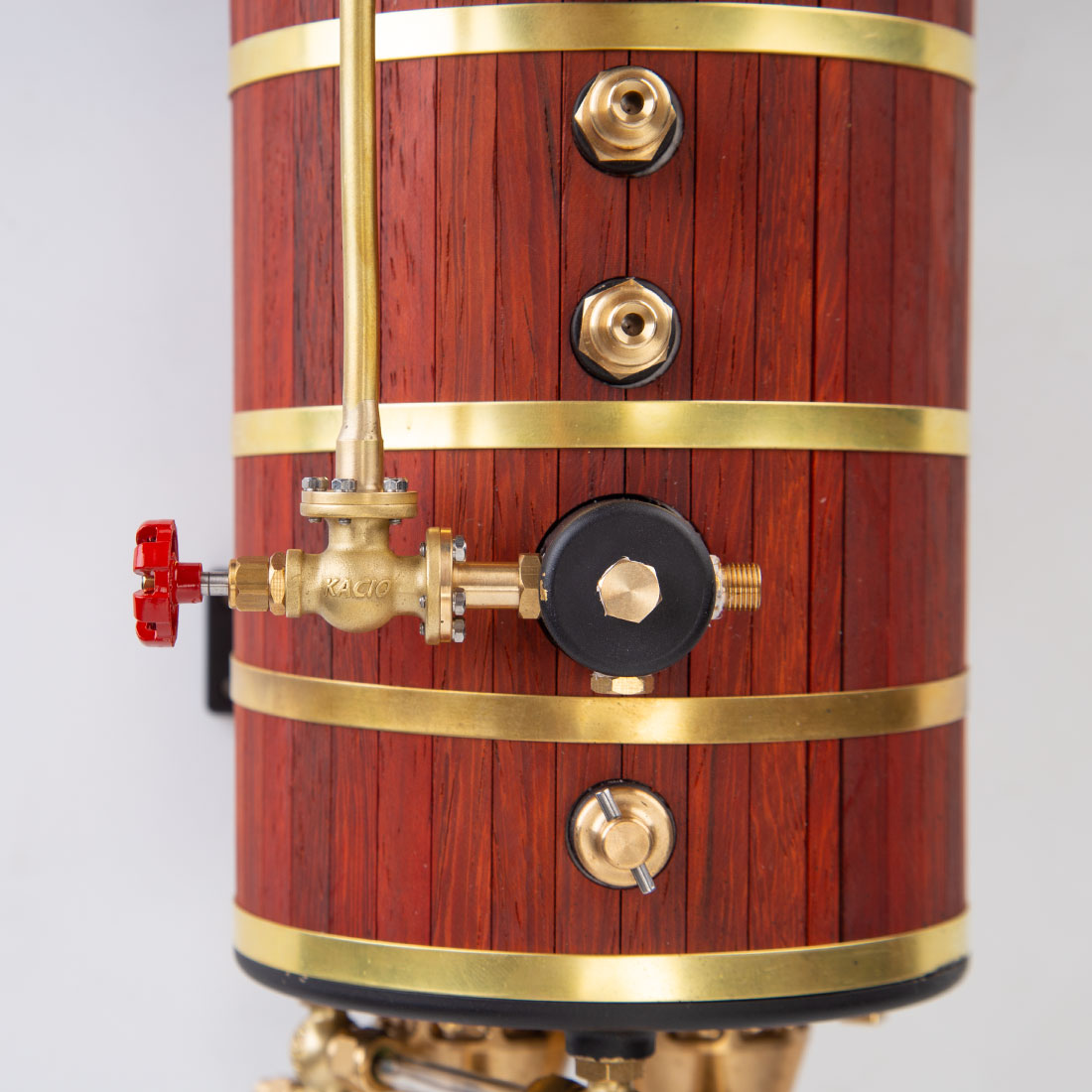

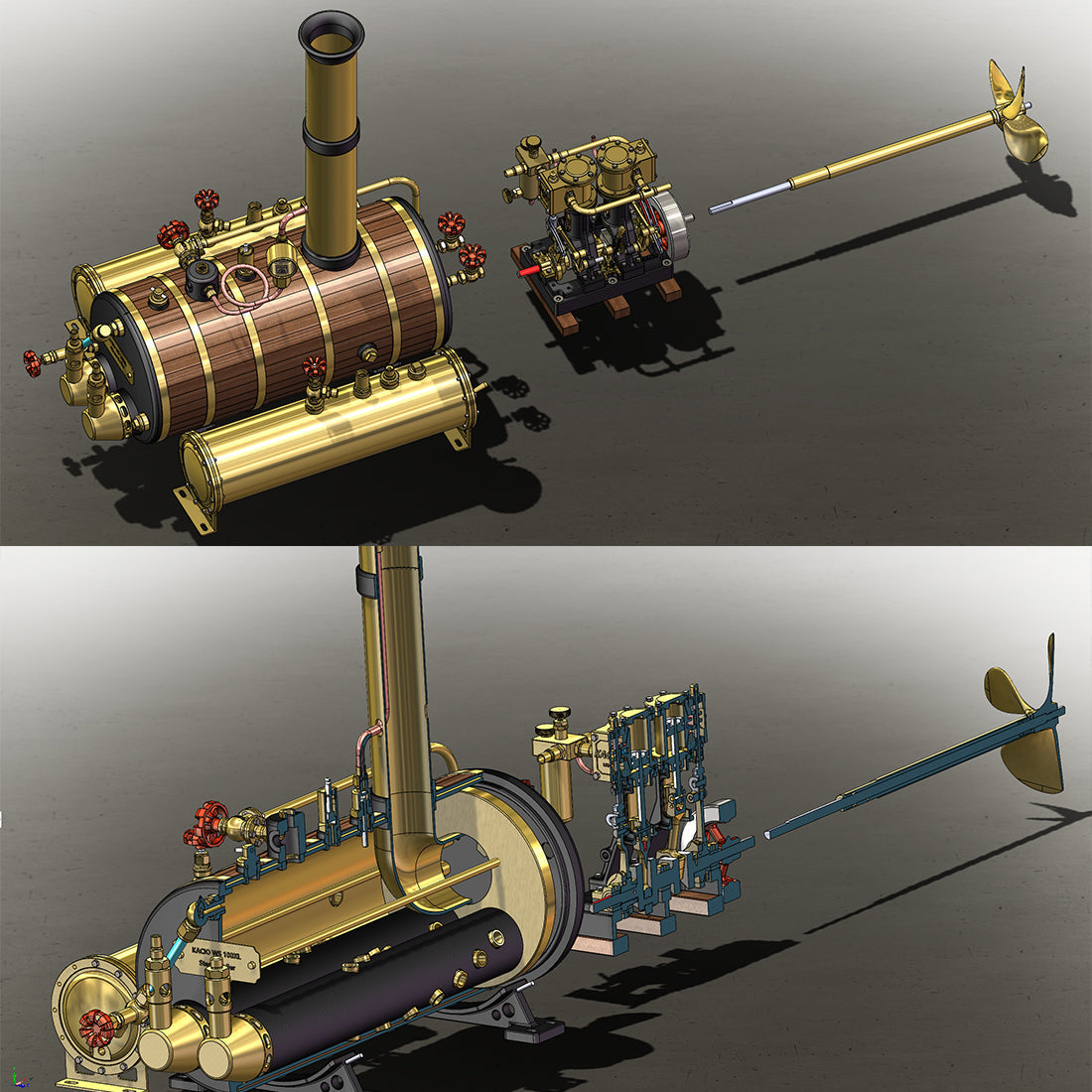

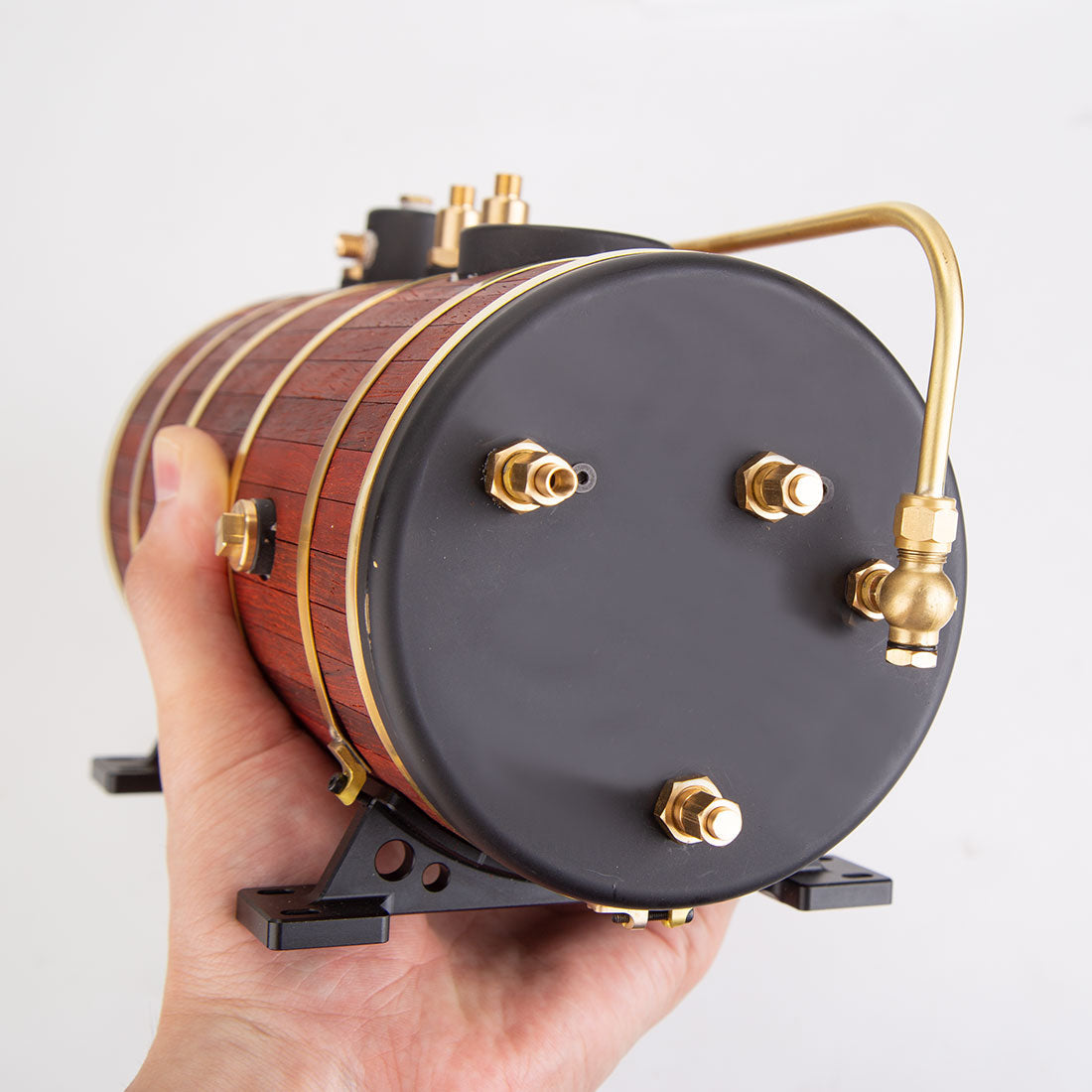

.Skillful Manufature: Made by fine copper, the surface of the boilder is designed with bixa orellana thermal insulation layer for excellent heat preservation. With double steam outlet and reserved smoke input port, the boilder is equipped with one reserved port on each side for convenient additional accessories.
.High-Efficiency: Tthe performance of boilder with ultra-high thermal conversion will satisfaction! The pressure of double combustion tube is available up to 0.4MPa in approx 8min and the safety valve pressure is 0.5MPa for safety during use.

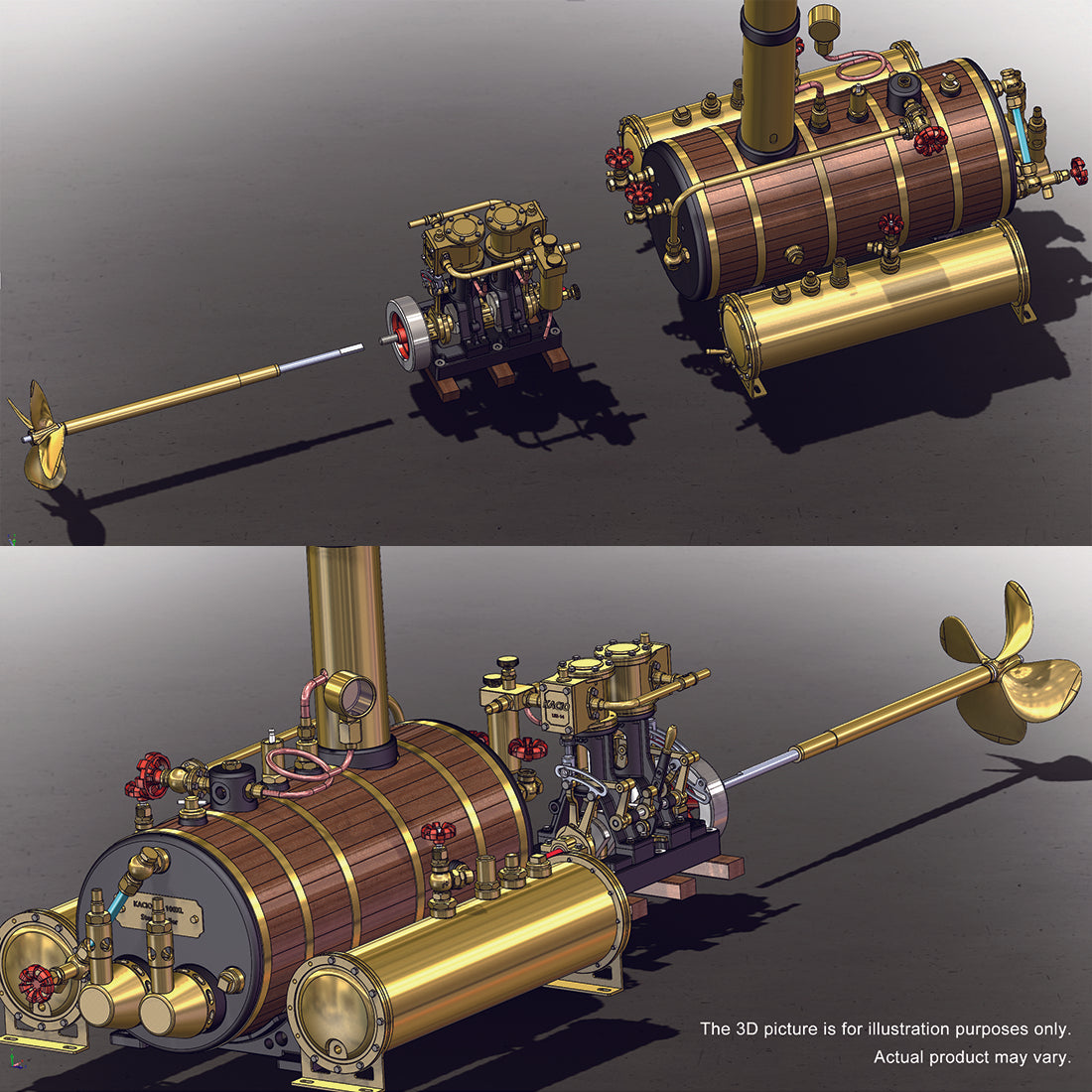

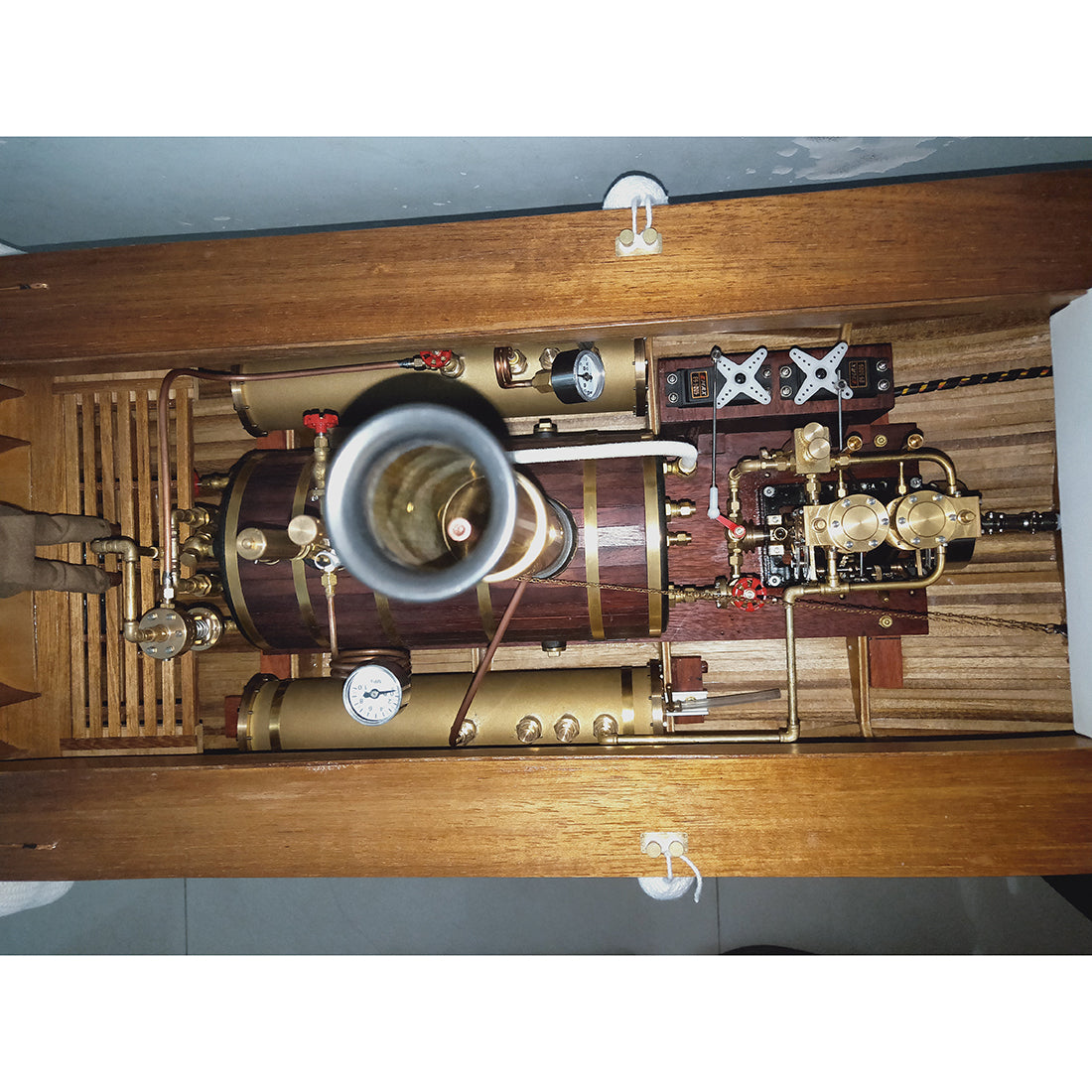

.Application Ranges: The best retro and collectible artwork is a gospel for steam model enthusiasts. Suitable for 1.0-1.5m steam model ships, three-cylinder driven steam engines and even racing vessels.
.Instructions: Please limit the amount of water in 3/5 of full capacity and the pressure under 0.5MPa. Pay attention to the burning duration to avoid dry burning and pump out the remaining water inside after use. In conjunction with fire control system for gas-saving and more safety, it is better to use butane as fuel.
Age Recommendation: 14+

Specifications:
.Material: Brass + Bixa Orellana
.Brand: KACIO
.Type: WS100XL
.Boilder Outer Diameter: 105mm
.Boilder Length: 220mm
.Total Length (Including Spark Plug): 252mm
.Full-Load Capacity: 1000mL
.Safety Valve Pressure: 0.5MPa
.Pipe Joints Specification: 1/4－40mm
.Product Dimensions: 10.5 x 10.5 x 25.2cm
.Product Weight: 3000g
.Package Dimensions: 35 x 19 x 23cm
.Package Weight: 3300g
.Packing: Box

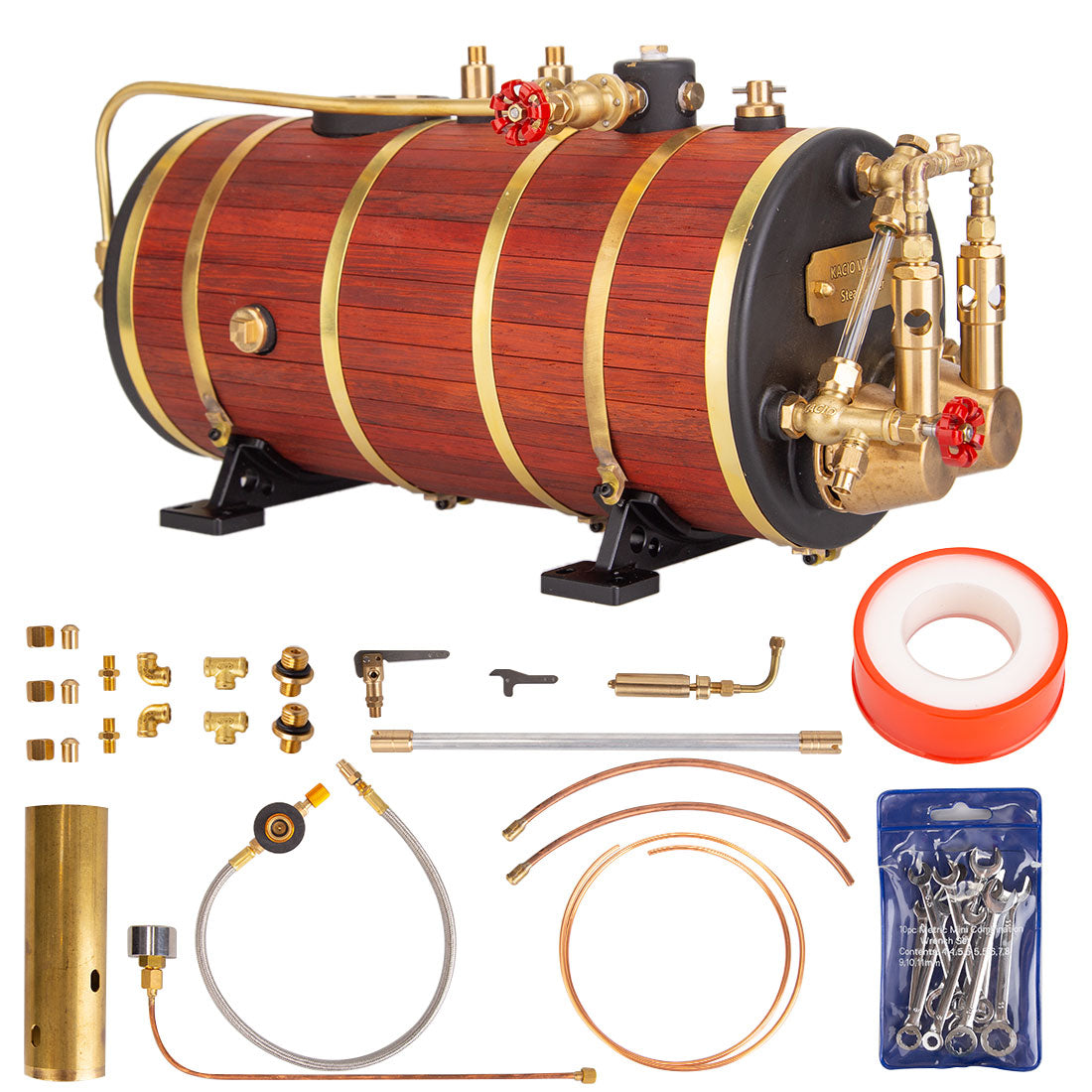

Package List:
1 x Steam Boiler Model
1 x Whistle
1 x Main Valve
1 x Pressure Gauge
1 x Butane Gas Tank Connecting Hose
1 x 1/4-40mm Joint
1 x 3.5mm Copper Pipe
